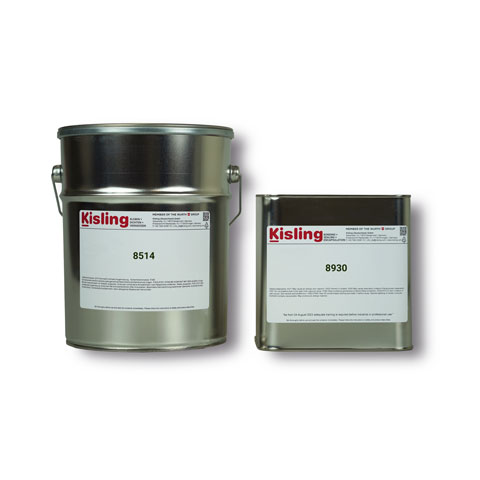

- 8514 + 8930 Polyurethane Encapsulant
8514 + 8930
Polyurethane Encapsulant
2-components polyurethane casting resin, CMR-free*, solvent-free and electrically insulating, very high thermal conductivity, no metallic fillers, excellent adhesive properties, no halogenated flame-retardants, ideal for heat-reduction of winding goods, electric motors, accumulators, and high-performance components, TIP: Design variations of effective cooling elements, good combination with Kisling’s LED-casting resins
As of August 24, 2023, all professionals and industrial users must complete a training before using this product. You can participate in the free training program here with the code FEICA_21_G.
* not required to be labelled CMR according to section 2 of the MSDS
Spezifikationen
| Eigenschaften | Bedingung |
|---|---|
| Produktkategorie | Encapsulants |
| Chemische Basis | Polyurethane |
| Farbe | natural (cream) |
| Dichte [g/cm3] | 2.20 – 2.30 |
| Mischungsverhältnis | 100 : 9 (W:W) |
| Viskosität [mPas] | 60 000 – 70 000 |
| Topfzeit [min] | 20 – 40 |
| Shore Härte (DIN EN ISO 868) | D40 – 50 |
| Temperatureinsatzbereich [°C] | -40 – +130 |
| Aushärtebedingungen | cold curing |
| Wärmeleitfähigkeit [W/mK] | 2.6 |
| Glasübergangstemperatur [°C] | -23 |
| CTE < Tg [ppm/K] | 137,9 |
| CTE > Tg [ppm/K] | 162,0 |
| UL94 | V0, 4 mm |
